RHINO M10p

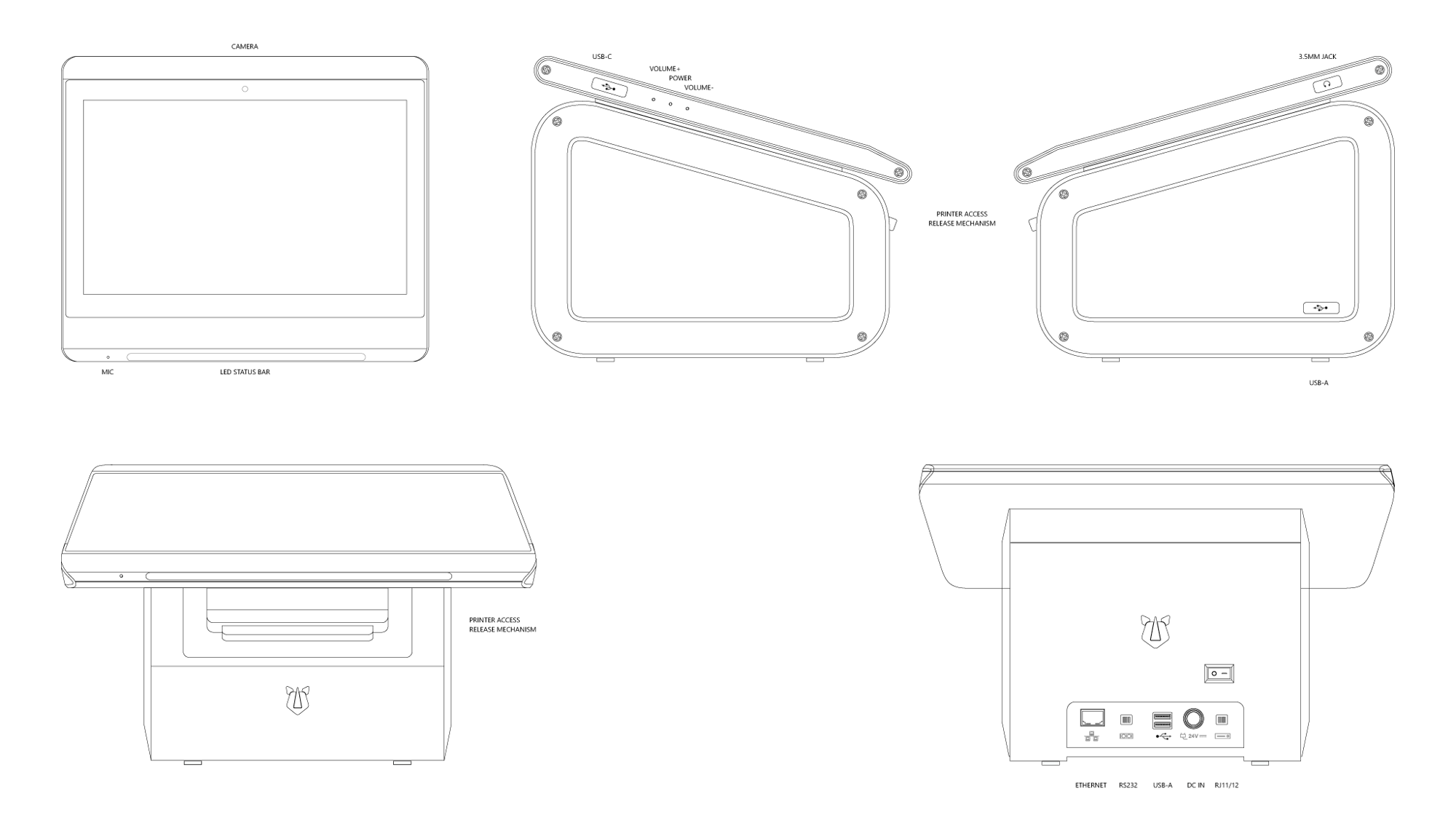

m10p_wireframe
RHINO C6

Specifications

OS OS Android 10
OS Update OS Update Android 11 (2022)
Memory Memory 32GB
Network Network Global LTE
RAM RAM4GB RAM
EMM EMM Validated
Display
10.1"
149.45 PPI
G+G
Contrast typically 600/800
Brightness up to 200/250 cd m2
1280 x 800 resolution
Viewing angles 85°/85°(v/h)
16.7m colours
16:10 aspect ratio
60Hz refresh rate
30/35ms response time
10 touch points
Memory & storage
4GB LPDDR4
32GB eMMC 5.1
Processor
MediaTek Genio 500 Octacore 2.0GHz
SIM
Standard SIM/eSIM
Ports
SIM
MicroSD up to 256GB
USB Type C, USB 2.0 (x3)
3.5mm jack
RJ11 Port
RJ45 Port
RS232 Port
24v PSU Socket
Printer
Seiko CAPM347
Thermal line dot printing
300mm/sec print speed
54, 56, 72, 80mm print width
Auto-cut
Audio
Stereo mic array
Stereo speakers
Wake word support
Connectivity
LTE Cat 4
2G: 2 3 5 8
3G: 1 2 4 5 8
4G: 2 3 4 5 7 12 17 20 25 26 30 41 66 71
Wi-Fi 802.11 a/b/g/n/ac
Bluetooth V 5.0
Location: GPS, GLONASS, BeiDou, Galileo
Camera
5M FF F2.2 4P lens (AR/OV)
Sensors
Gyroscope
Ambient light sensor
Environmental
Functional up to 95% humidity
-10c to 55c typical operating temp
Unboxed:L:228.60mm x W:248.92mm x H:190.5mm
Boxed:L:273.05mm x W:298.45mm x H:247.65mm
 IP2X
Certifications
FCC
CE
CEC
DOE
PRO65
ROHS
REACH
WEEE
UL (power adapter only)
Download spec sheet

Documents



All device related documents and information can be found below:

Quickstart Guide

Get started with your device quickly

Download
Seiko CAPM347 datasheet

Detailed overview of the CAPM347 printer

Download

Product lifecycle



For product support and lifecycle status, please see the software releases page.

Warranty information

All RHINO hardware comes with a 1 year limited warranty.



For detailed warranty information, please see RHINO Warranty.
